| MEASURING TIPS. CHOOSE A CALM DAY IF POSSIBLE.
STRETCH YOUR TAPE MEASURE AS TIGHT AS YOU CAN AND TAKE THE
MEASUREMENT. IF NECESSARY MEASURE A FEW TIMES AND SEND US THE
AVERAGE. DO NOT ALLOW FOR STRETCH, WE'LL DO THAT. |
 |
I DIMENSION |
measure from the intersection of the forestay and the mast
down to the deck |
|
 |
J DIMENSION |
measure from the forestay attachment point at the deck to
the front of the mast |
|
 |
MAX LUFF (no furling) |
measure from the halyard attachment to the bearing surface
of the tack attachment (for hanks) |
|
 |

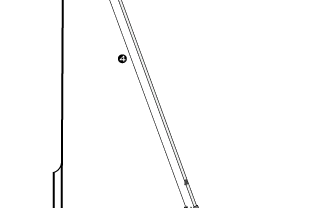

MAX LUFF (for furling) |
measure from the bearing surface of the swivel shackle, to
the bearing surface of the drum shackle |
|
 |
DRUM HEIGHT |
measure from the bearing surface of the shackle to the
center of the forestay pin |
|
 |
FORESTAY PIN |
measure from the center of the forestay pin to the deck |
|
 |
FURLING SWIVEL |
measure from the bearing surface of the halyard attachment
to the bearing surface of the sail attachment |
|
 |
TACK SETBACK |
measure from the back side of the foil to the bearing
surface of the tack shackle |
|
 |
FEEDER HEIGHT |
measure from the headsail tack attachment point to the
bottom of the feeder |
|
 |
LUFF TAPE SIZE |
what kind of furling unit do you have, or do you have
hanks? |
|
 |
CLEW HEIGHT |
what is your preferred clew height (low at lifeline
height, or higher near boom height?) |
|
 |
TRACK POSITION |
measure from the forestay attachment point at the deck to
the front of the Genoa track |
|
 |
TRACK POSITION |
measure from the swivel shackle (or halyard for hank-on)
to the front of the Genoa track |
|
 |
TRACK LENGTH |
measure the length of your track |
|
 |
TRACK POSITION |
measure from the centerline of the boat to the track |
|
|
MISC DETAILS |
*pass the tape around the
outside of the shrouds as the leech of the sail
would. |
